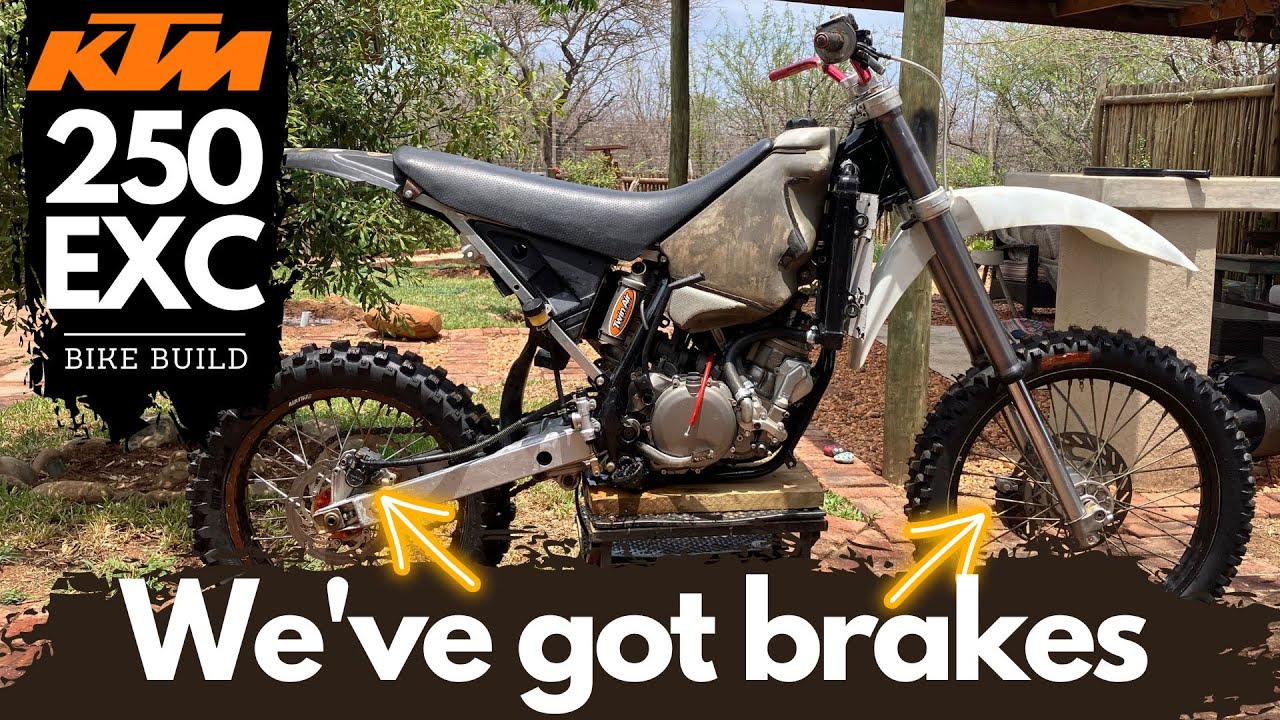

Let's see if we can get some brakes on this 1996 KTM 250 EXC
0:09
Hi, I'm Francois from adventurebiketroop.com and in this video I want to give you an update on the KTM 250 EXC bike build
0:17
It's been a while since I've worked on it and the main reason for that is I'm waiting for fork seals and I could only find them on eBay from France and they haven't arrived yet
0:28
it's been more than a month now so I hope they do arrive the other thing is I
0:31
haven't been able to get the brakes to to build up pressure so I took the brakes
0:38
apart cleaned out the cylinders cleaned out the calipers removed all the old
0:43
paint check the seals they were fine put it back in so it was quite a mission to
0:48
get the pistons out so what I ended up doing was using a grease gun and that
0:54
helped me or that with that I managed to push out the pistons it's quite a mess
0:59
but anyways it works a treat then I put everything back together again put it on
1:05
the bike and I started bleeding it but I've never bled brake from dry so without
1:11
any fluid in it and and I didn't realize it's such a mission because I don't have
1:17
any tools I don't have a vacuum pump so I am pretty sure that they are just air
1:21
bubbles in it so I've spoken to a lot of people watched videos and what I'm
1:25
going to try now is to use a syringe to pull out some of those bubbles So
1:51
quite a lot of brake fluid went in there without anything coming out at the top
1:59
You can see it's dry there so that makes me think there's a lot of air in there
2:04
So I'm going to keep doing this and see if I can get brake fluid to squirt at the top
2:11
I think I should probably actually clamp down the lever with the cable tie so that it's
2:16
open so the air bubbles can come out. So let's do that. Okay, I think I'm onto something because there are a whole lot of bubbles squirted out when
2:22
I pressed on the lever. Or maybe I'm just gonna keep pushing air bubbles up and then releasing them with the lever
2:35
I'll show you the next time and then hopefully that works. Ok let's see if we can get more air out
3:02
I think the level is actually raised now Ok no air bubbles this time I just gonna clamp it down open it up so if
3:21
anything squeezes out it can release itself so I've clamped down the lever
3:32
and the reservoir is full and let's see if we can squeeze out some more from the bottom up
4:02
Making a mess as usual, let's see at the top
4:23
Now let's try to bleed it normally and see if we can get pressure in there
4:28
We managed to get breaks in the front. So what I ended up doing was to just squeeze it from the bottom with the syringe, trying
4:38
not to let air bubbles in and I opened it at the top And then I just bled it normally which wouldn work initially and I didn realise that So it because of all the air that I can bleed it I was just compressing air bubbles so we got solid front brakes and now we gonna
4:56
try the rear but anyways that worked it's so silly because it's such a simple
5:01
problem that you just can't figure out at all if you don't know what you're
5:06
doing so I just I try to squeeze out all the air for probably about 30 minutes
5:13
without any luck but it's yeah if you just can get most of it out then from
5:19
there it's just normal bleeding Okay so I tried the same on the rear, I ran out of time, the rear is not pressurised yet
5:41
but the front is, front works perfectly, I managed to get the rear cylinder to pop out
5:47
but it's not touching the disc yet or the pads are not touching the disc yet
5:51
So there's still too much air in there, but I will get it fixed, I'm sure
5:55
Hopefully it's not this aftermarket brake cylinder, the slave cylinder. Otherwise I'll have to get a proper Brembo one, a second name one
6:02
But anyways, that's all for this week. I've managed to get the brake, at least the front brakes to work
6:08
So we are making progress. Now if I can just find that 49.5mm fork seal
6:14
If anyone knows where I can find an old 95, 96 KTM fork seals, please let me know
6:21
Anyways, that's it for this week and I'll see you next time
